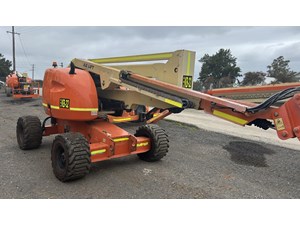

Recertified JLG - 450AJ Series II Articulating Boom Lift
10-year recertified and painted
JLG engine powered boom lifts get you into position quickly and efficiently for optimum productivity. They offer exceptional reach, high capacity, versatile performance, and easy maintenance.
Features:
-Reach those tight spaces that you cant reach with other lifts
-Best-in-class lift speed increases productivity and efficiency
-Easy-to-use controls reduces training time and increases time on the job
Quick Specs:
Platform Height Elevated 45 ft
Overall Width 6 ft 10 in
Platform Capacity 500 lb
Reach Specifications:
Platform Height 45' / 13.72 m
Horizontal Outreach 24' 6" / 7.47 m
Up and Over Height 25' 2" / 7.67 m
Swing 360º Non-Continuous
Platform Capacity 500 lb / 227 kg
Platform Rotator 180º Hydraulic
Jib (Range of Articulation) 145º (+78, -67)
Dimensions:
Platform Size 30 x 72" / 0.76 x 1.83 m
Overall Width 6' 10" / 2.08 m
Tailswing Zero
Stowed Height 7' 5" / 2.26 m
Stowed Length 21' 5" / 6.53 m
Wheelbase 6' 6" / 1.98 m
Ground Clearance 14" / 36 cm
Weight* 16,000 lb / 7,257 kg
Max. Ground Bearing Pressure*** 36 psi / 2.5 kg/cm²
Power Source:
Dual Fuel Engine GM Vortec 3000 MPFI, 82 hp / 61 kW
Diesel Engine Perkins 404C-22 49 hpCaterpillar C2.2 50 hp / 36.5 kW37.2 kW
Fuel Tank Capacity 16.5 gal. / 62.46 L
Hydraulic Reservoir 30 gal. / 113.56 L
Auxiliary Power 12V DC
Noise Level 70 dBa 7 meters
Chassis:
Drive Speed 2WD 3.5 mph / 5.6 kmph
Drive Speed 4WD 4.5 mph / 7.2 kmph
Gradeability 2WD 30%
Gradeability 4WD 45%
Turning Radius (Inside) 5' 8" / 1.73 m
Turning Radius (Outside) 14' / 4.27 m
Axle Oscillation 8" / 20 cm
Tire Size 33/1550 x 16.5
Tyre Type Superwide
Type of Tracks** Open Bar Steel Track
Tracks Width** 12" / 30.5 cm

JLG 450AJ

New Genie 19ft Scissor Lift and Galvanised Trailer
Genie Scissor Lift
5.8m Platform Height
7.8m Reach Height
Fits through door ways
24V dc with battery charger.
2-years warranty
5-years structural warranty
Galvanised Trailer
Total GVM 2300kg
Full Galvanised
5-year Chassis warranty
Dual Axel Braking

GENIE GS1932 + TRAILER COMBO

UP LIFT UG35AC

The Snorkel S3013 MINI scissor lift is mighty. Its small enough to pass through a standard doorway, yet mighty enough to provide all day versatility for any sized job. Easy to use, efficient, and reliable, the compact S3013 MINI is a perfect choice for any indoor construction or maintenance application
- Full electric drive micro scissor
- 2 person Indoor / 1 person outdoor rated 100% operation
- Fixed control box with pendant controller
- Total machine weight 794kgs
- 272kgs platform capacity
5 year warranty on lithium batteries
Max Working Height 6m
Max. Platform Height 4m
Platform Size (stowed) 0.75m x 1.32m
Platform Size (extended) 0.75m x 1.93m
Deck extension length 0.61m
Overall length (with step) 1.44m
Overall length (without step) 1.39m
Overall Width 0.76m
Min. Height (guardrails folded) 1.59m
Stowed Height 1.85m
Platform Capacity (SWL) 272kg
Max Drive Height 5.79m
Max Drive Speed (stowed) 4.0km/h
Max Drive Speed (elevated) 0.8km/h
Raise/Lower Time 20/35 seconds
Gradeability 25%
Inside Turning Radius 0.13m
Outside Turning Radius - 1.47m
Controls - Proportional
Drive System 2 wheel electric drive
Power Source Lithium Batteries
Weight 794kg

SNORKEL S3013 MINI

New 14ft Genie Electric Scissor Lift and Trailer Combo - great value

GENIE GS1432M

UP LIFT UG40AC

Haulotte Optimum 8 Electric Scissor Lift
-19ft electric scissor lift
-Batteries are fair - will supply new batteries for an additional $1,000 + GST
-low 617 hours
-First commissioned in 2017
-Neat and tidy condition
-Extendable Platform
-Ground and Platform Controls
-The machine is rated at a max platform weight capacity of 230kg or 2 people and 70kg
-The maximum platform height is 5.76m with a maximum working height of 7.76m
-Non marking tyres
-Inbuilt charger that plugs into a regular 240 volt wall outlet
-Machine is also fitted with rear step ladder
-Flashing amber beacon light
-2 x Emergency stop buttons
-Lift/Tie points
FEEL FREE TO CALL PRONTO ACCESS FOR ALL INFORMATION CONCERNING THIS MACHINE AND ANY OTHER PRODUCT WE SELL

2016 HAULOTTE OPTIMUM 8

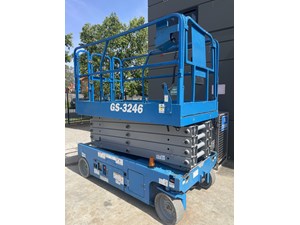

2016 GENIE GS3246

10-year Recertified JLG 260 MRT 26ft Diesel 4WD Rough Terrain Scissor Lift
Into service in 2014
Low 1228 hours
Recertified in 2025 by JLG
Full Respray
4 x New solid non marking all terrain tyres
4WD all terrain diesel scissor lift
Kubota diesel motor 24hp/18kw
Max platform height 8 metres
Max Working height 10 metres
Safe working load 565kgs
2 speed
Extendable platform
Ground & Basket controls
E-stops
The machine has 4 x hydraulic Outriggers that can be self-levelled
Lift and Tie down points
Smooth control, proportional drive, with two speed ranges
Kubota D1005 diesel engine with increased HP output
Fold down rails allows drive through a 203cm door
Extension platform has fold down rails.
Urethane filled non-marking lug tyres
Steering with tight 213cm turning radius
Constant traction 4 wheel drive for 35 per cent gradeability
Wide scissor stack provides rigidity and stability
Extended stabilisers prevent drive.
Auto level stabiliser feature allows adjust lateral stabiliser levelling from steer switch
Multi axis 4 degree level sensor
Plug in JLG analyser to indicate system functions for servicing and adjustment
Removable platform control box

JLG 260MRT

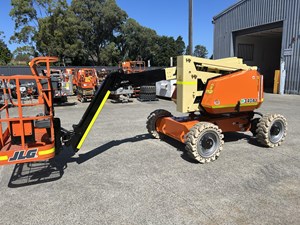

Used JLG 34ft Hybrid Knuckle Boom Lift
Into Service May 2018
Low 990 hours
Diesel-like performance Four independent electric-drive motors and a Tier 4 Final diesel-powered generator provide exceptional terrainability on par with its diesel counterpart
Hybrid technology Runs completely on 8 x 12v 100 amp-hour AGM batteries, which are charged by the diesel generator
Versatility The power of a diesel machine combined with hybrid efficiency allows you to work both inside and outside
Low emissions Experience reduced fuel use*, emissions, noise and maintenance
* Compared to a diesel-powered JLG 340AJ under similar test conditions. Actual results may vary.

Standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware
Power Source
Batteries 8 x 12V, 100 Amp-Hour
Electrical System 48 Volts DC
Generator / Engine - Brand Kubota
Generator / Engine - Fuel Tank Capacity 13 gal. / 49.21 L
Generator / Engine - Fuel Type Diesel
Generator / Engine - Horsepower / Kilowatts 11.1 hp / 8.28 kW
Performance
Drive Speed - Platform Lowered 3.7 mph / 5.95 km/h
Gradeability - 4WD 45 %
Platform Capacity 500 lb / 226.80 kg
Swing 355 Degrees
Swing Type Non-Continuous
Turning Radius - Outside 13 ft / 3.96 m
Jib - Range of Articulation 139 Degrees
Dimensional Data
Ground Clearance 10 in. / 0.26 m
Machine Height 6 ft 7 in. / 2.01 m
Machine Length 18 ft 2 in. / 5.54 m
Machine Width 6 ft 4 in. / 1.93 m
Platform Dimension A 2 ft 6 in. / 0.76 m
Platform Dimension B 5 ft / 1.52 m
Tailswing 2 in. / 0.05 m
Tire Size 265/50 D20 Foam Filled
Wheelbase 6 ft 2 in. / 1.88 m
Reach Specifications
Horizontal Jib Rotation 0 Degrees
Horizontal Outreach 19 ft 11 in. / 6.07 m
Platform Height 33 ft 10 in. / 10.31 m
Up and Over Height 17 ft / 5.18 m
General
Capacity - Hydraulic Reservoir 20.6 gal. / 77.98 L
Machine Weight 9860 lb / 4472.42 kg
Maximum Ground Bearing Pressure 64 psi / 4.48 Kg/cm2
FEEL FREE TO CALL PRONTO ACCESS FOR ALL INFORMATION CONCERNING THIS MACHINE AND ANY OTHER PRODUCT WE SELL

JLG H340AJ

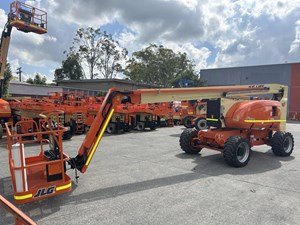

66ft JLG Stick Boom Lift 10-year recertified and painted

JLG 660SJ

New 19ft Scissor Lift Genie and Galvanized Scissor Lift trailer Combo

GENIE GS1932M
