PRONTO ACCESS EQUIPMENT

Genie 34ft Diesel 4WD Rough Terrain Knuckle Boom Lift Industry Leader
Maximum Working Height 12.5m
Maximum Platform Height 10.5m
Max Horizontal Reach 6.78m
Max Up & Over 4.6m
Platform Capacity 227kg
Weight of Boom Lift 4,994kg
Ideal for outdoor construction and industrial applications, the engine-powered Genie® Z®-34/22 IC articulating boom lift provides lifting versatility with a combination of up, out and over positioning capabilities and outreach thats second to none. This model is available in 4WD.
Overview
Zero tailswing and nose swing in all positions allow excellent manoeuvrability in confined areas
Two speed hydraulic motors drive and efficient power transmission for optimum speed and torque on rough terrain
4WD and up to 45% gradeability for superior terrainability
Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
1.22 m (4 ft) articulating jib with a 139° vertical rotation and 180° hydraulic platform rotation to accurately position workers

GENIE Z34/22IC

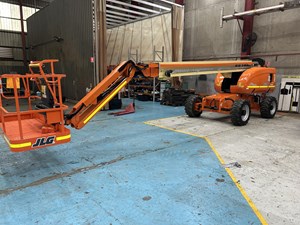

Recertified JLG - 450AJ Series II Articulating Boom Lift
10-year recertified and painted
JLG engine powered boom lifts get you into position quickly and efficiently for optimum productivity. They offer exceptional reach, high capacity, versatile performance, and easy maintenance.
Features:
-Reach those tight spaces that you cant reach with other lifts
-Best-in-class lift speed increases productivity and efficiency
-Easy-to-use controls reduces training time and increases time on the job
Quick Specs:
Platform Height Elevated 45 ft
Overall Width 6 ft 10 in
Platform Capacity 500 lb
Reach Specifications:
Platform Height 45' / 13.72 m
Horizontal Outreach 24' 6" / 7.47 m
Up and Over Height 25' 2" / 7.67 m
Swing 360º Non-Continuous
Platform Capacity 500 lb / 227 kg
Platform Rotator 180º Hydraulic
Jib (Range of Articulation) 145º (+78, -67)
Dimensions:
Platform Size 30 x 72" / 0.76 x 1.83 m
Overall Width 6' 10" / 2.08 m
Tailswing Zero
Stowed Height 7' 5" / 2.26 m
Stowed Length 21' 5" / 6.53 m
Wheelbase 6' 6" / 1.98 m
Ground Clearance 14" / 36 cm
Weight* 16,000 lb / 7,257 kg
Max. Ground Bearing Pressure*** 36 psi / 2.5 kg/cm²
Power Source:
Dual Fuel Engine GM Vortec 3000 MPFI, 82 hp / 61 kW
Diesel Engine Perkins 404C-22 49 hpCaterpillar C2.2 50 hp / 36.5 kW37.2 kW
Fuel Tank Capacity 16.5 gal. / 62.46 L
Hydraulic Reservoir 30 gal. / 113.56 L
Auxiliary Power 12V DC
Noise Level 70 dBa 7 meters
Chassis:
Drive Speed 2WD 3.5 mph / 5.6 kmph
Drive Speed 4WD 4.5 mph / 7.2 kmph
Gradeability 2WD 30%
Gradeability 4WD 45%
Turning Radius (Inside) 5' 8" / 1.73 m
Turning Radius (Outside) 14' / 4.27 m
Axle Oscillation 8" / 20 cm
Tire Size 33/1550 x 16.5
Tyre Type Superwide
Type of Tracks** Open Bar Steel Track
Tracks Width** 12" / 30.5 cm

JLG 450AJ

51FT GENIE DIESEL KNUCKLE BOOM
Genie Knuckle Boom Model; Z-51/30J RT
MACHINE SPECIFICATIONS:
- Max Working Height - 17.59 m
- Max Horizontal Reach - 9.37 m
- Max Up and Over Clearance (riser extended) M - 7.39 m
- Platform Capacity - 227 kg
The Genie® Z®-51/30J RT articulating boom lift provides lifting versatility with a combination of up, out and over positioning capabilities with outreach thats second to none. Ideal for outdoor construction and industrial applications.
FEEL FREE TO CALL PRONTO ACCESS FOR ALL INFORMATION CONCERNING THIS MACHINE AND ANY OTHER PRODUCT WE SELL

GENIE Z51
